Note:Not support 775!!!
Specification:
Material: Copper, aluminum
Product size: A pprox. 95(L)* 95(W)* 70(H)mm
Aluminum size: Approx. 90(L)* 90(W)* 35(H)mm
Fan size: Approx. 90(L)* 90(W)* 25(H)mm(mute fan)
Voltage: 12V
Power interface: 3PIN(velocity measurement)
Fan speed:2200±10% RPM
Air flow: 48CFM
Bearing type: Hydraumatic
Noise Level: 0-20dB(A)±10%
Life: 50000 hours

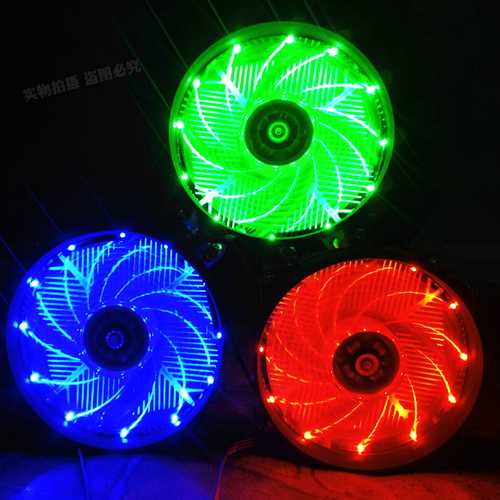

Color: Blue, Red, Green
Compatibility: Intel 115X Series 1150 1155 1156 1151(Not support 775)
Features:
1. Copper aluminum combined 32mm side length bottom contact surface to enhance heat dissipation effect.
2. Inlaid 30mm, diameter 20mm height copper column, large copper core contact area, high performance silicone greasefilled between copper core and aluminum material to ensure good heat conduction.
3. Maintenance free hydraulic bearings, plump copper coils, thick magnetic rings, imported IC circuit chipset, stable, efficient, intelligent, long service life.
4. Long life fan, high efficiency, durable, big fan, low noise
5. Simple installation, rookie and master can use
Packing list:
1x Fan(With base stand)
Note:
* No Installation Guides Are Included.
* Due to the manual measurement,there might be some error.
