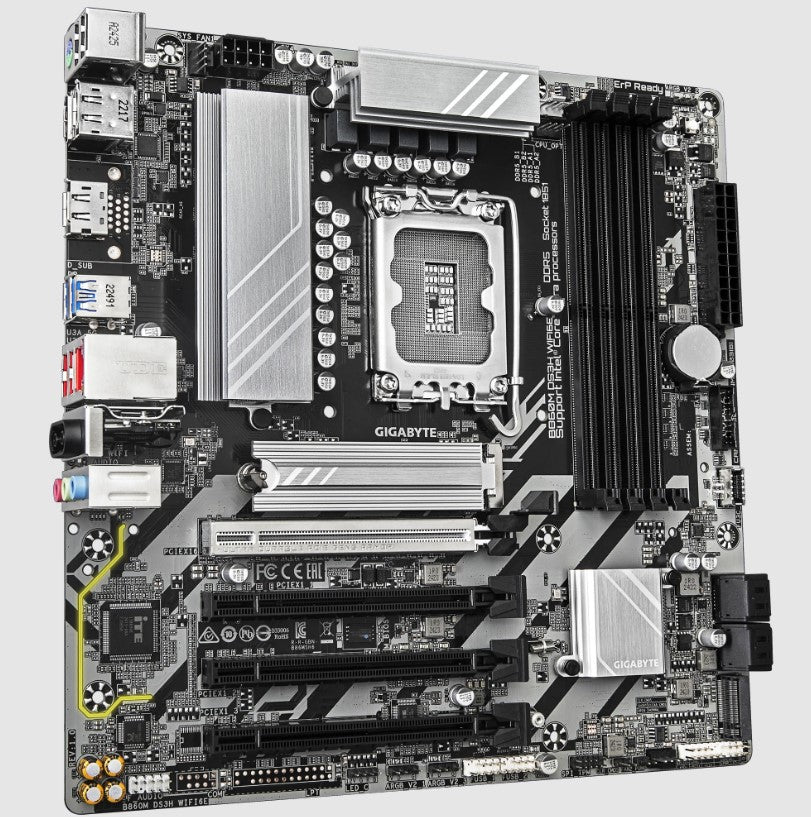

Gigabyte B860M DS3H WiFi 6E Micro ATX Motherboard - LGA1851 Socket, DDR4, PCIe 4.0, Dual M.2 - Perfect for Gaming PC & Home Office Builds

Gigabyte B860M DS3H WiFi 6E Micro-ATX LGA1851 Motherboard – Specifications

Key Features:

Socket & Chipset: LGA 1851, Intel B860

Memory: 4 x DDR5 DIMM slots (up to 256GB, 9066 MT/s)

Expansion Slots: 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x1

Storage: 2 x M.2 (PCIe 5.0 & 4.0), 4 x SATA III (RAID 0, 1, 5, 10)

Connectivity & Networking:

LAN: 2.5Gb Ethernet

Wi-Fi: Wi-Fi 6E (802.11ax) + Bluetooth 5.3

Rear I/O Ports:

1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 3 x USB 2.0

1 x HDMI 2.1, 2 x DisplayPort

1 x 2.5GbE RJ-45, 3 x 3.5mm audio jacks, 1 x Wi-Fi antenna connector

Internal Features:

Power Delivery: 5+1+2 phase VRM design

Cooling: Large heat sinks + M.2 Thermal Guard

RGB Support: 3 x RGB LED headers

EZ-Latch: Tool-less PCIe & M.2 installation

Audio & Form Factor:

Audio: Realtek 7.1-channel HD audio

Size: Micro-ATX (244 x 244 mm)

Weight: Approx. 1.1 kg
